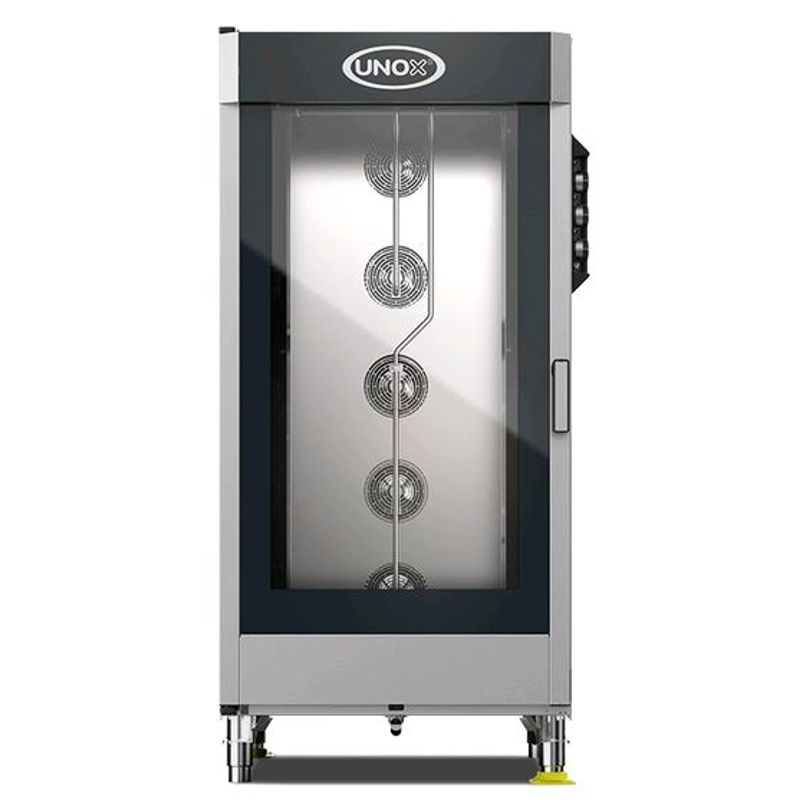

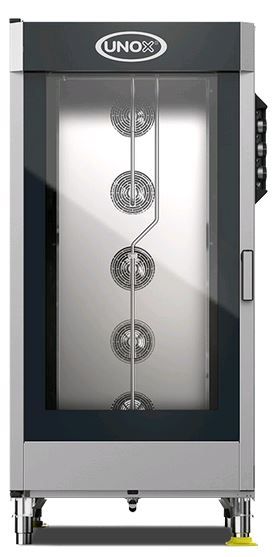

The Unox CHEFLUX XV1093 is a floor-standing 20-tray GN 1/1 electric oven with simple analogue knobs for time, temperature, steam percentage and two fan speeds. It is built for high-volume kitchens that want capacity and reliability without a touch screen.
STEAM.Plus adds humidity instantly and DRY.Plus extracts it, while AIR.Plus reversing fans spread heat evenly across all 20 trays at 66 mm spacing. It runs from 80 to 260°C, measures 913 x 997 x 1863 mm, draws 29.7 kW on a 3 phase supply and weighs 240 kg.
| Specification | Description |
|---|---|
| Item Code | EPU028 |
| Supplier Code | XV1093 |
| Brand | Unox |
| Model | XV1093 CHEFLUX |
| Capacity | 20 x GN 1/1 |
| Tray Spacing | 66 mm |
| Dimensions | 913 mm W x 997 mm D x 1863 mm H |
| Power | 29.7 kW |
| Electrical | 380-415 V 3 phase + N, 44 A max (50 A breaker) |
| Weight | 240 kg |
| Temperature | 80-260°C |
| Format | Floor-standing |
What power supply does it need?
380-415 V 3 phase plus neutral, up to 44 A on a 50 A breaker. A 220-240 V 3 phase option is available.
Is it a full combi oven?
It is a convection oven with humidity control (STEAM.Plus) and manual knobs, rather than a programmable combi.
How many trays does it take?
20 GN 1/1 trays.
Does it need water?
Yes, for the STEAM.Plus humidity function, plus a drain.
How do I clean it?
Clean the chamber daily with an oven cleaner suited to stainless steel, rinse well and wipe the door glass.
Not sure which oven suits your kitchen? Our team can help you compare models, power requirements and options and put a quote together.
