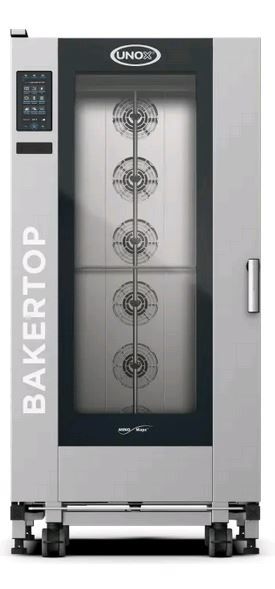

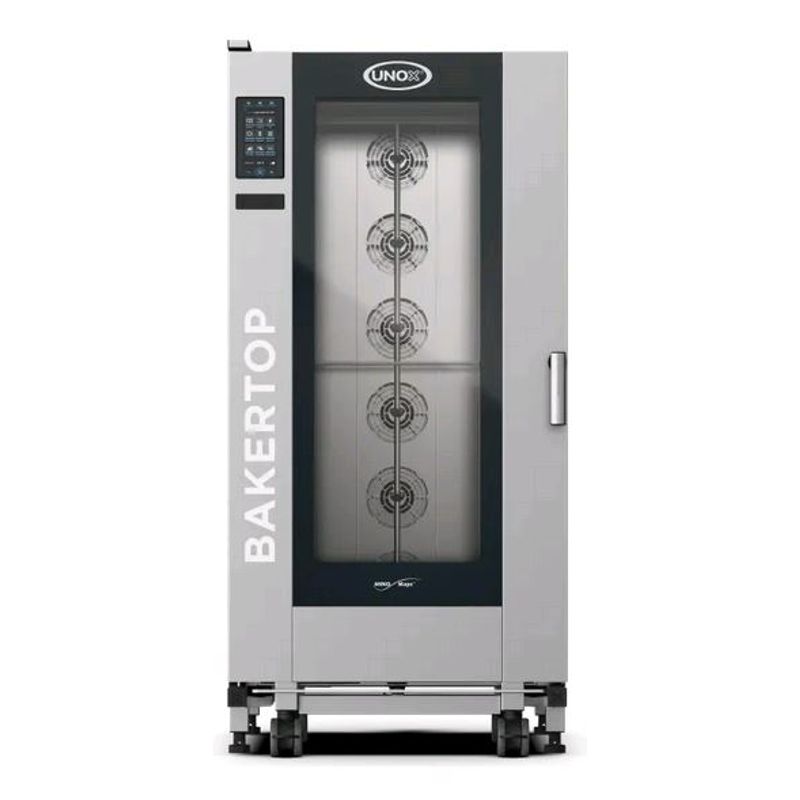

The Unox BAKERTOP MIND.Maps PLUS BIG is a floor-standing 16-tray combi oven for 600 x 400 mm bakery trays, built for high-volume bakeries and pastry kitchens. Six reversing motors and 80 mm tray spacing keep colour even from top to bottom.
It runs from 30 to 300°C, with CLIMALUX humidity control, STEAM.Maxi and PRESSURE.Steam, DRY.Maxi moisture extraction, a multi-point core probe and a 9.5-inch touch panel. It measures 892 x 1018 x 1875 mm, draws 38.5 kW on a 3 phase supply and weighs 292 kg, with ROTOR.Klean automatic washing.
| Specification | Description |
|---|---|
| Item Code | EPU2045 |
| Supplier Code | XEBL-16EU-YPRS |
| Brand | Unox |
| Model | XEBL-16EU-YPRS |
| Capacity | 16 x 600 x 400 mm |
| Tray Spacing | 80 mm |
| Dimensions | 892 mm W x 1018 mm D x 1875 mm H |
| Power | 38.5 kW |
| Electrical | 380-415 V 3 phase + N, 58 A max (63 A breaker) |
| Weight | 292 kg |
| Temperature | 30-300°C |
| Control | 9.5-inch touch panel |
| Format | Floor-standing |
What power supply does it need?
380-415 V 3 phase plus neutral, up to 58 A on a 63 A breaker.
Is it only for bakery?
It is designed around 600 x 400 trays, but full combi functions mean it can also roast and steam.
Does it clean itself?
Yes, with ROTOR.Klean automatic washing.
Does it need water and drainage?
Yes, for steam and washing.
How many trays does it take?
16 trays 600 x 400 mm.
Not sure which oven suits your kitchen? Our team can help you compare models, power requirements and options and put a quote together.
